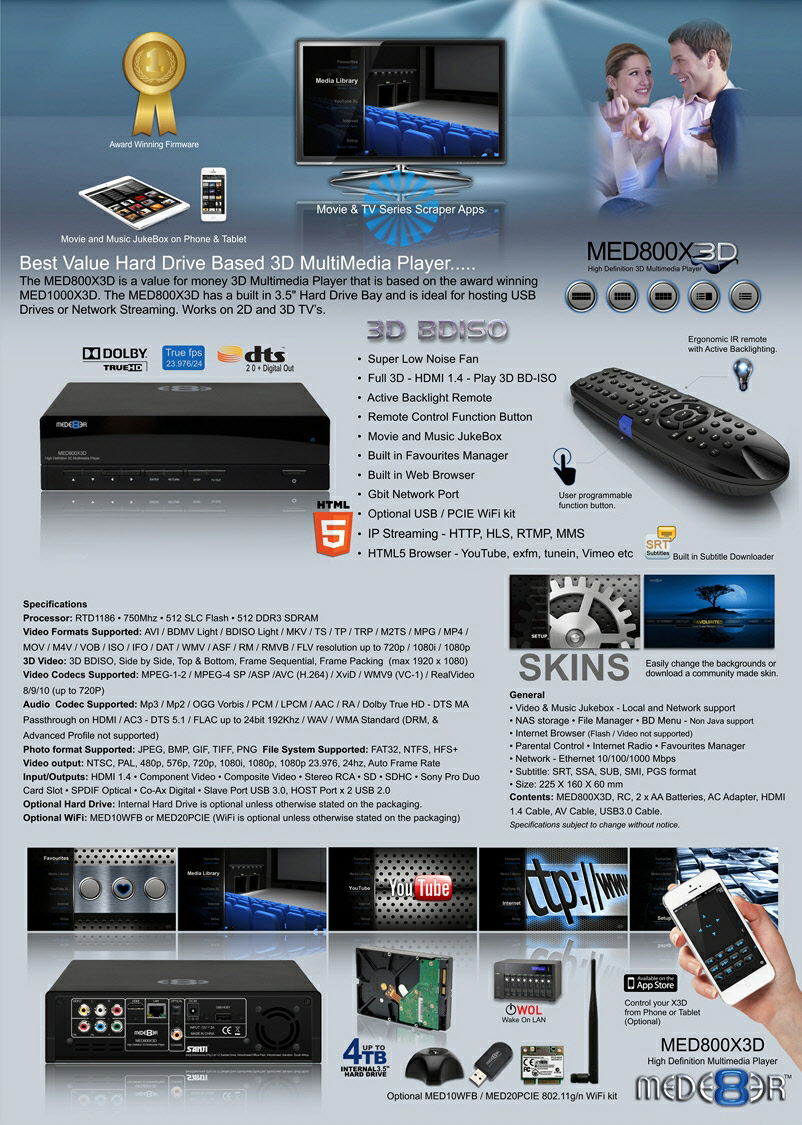

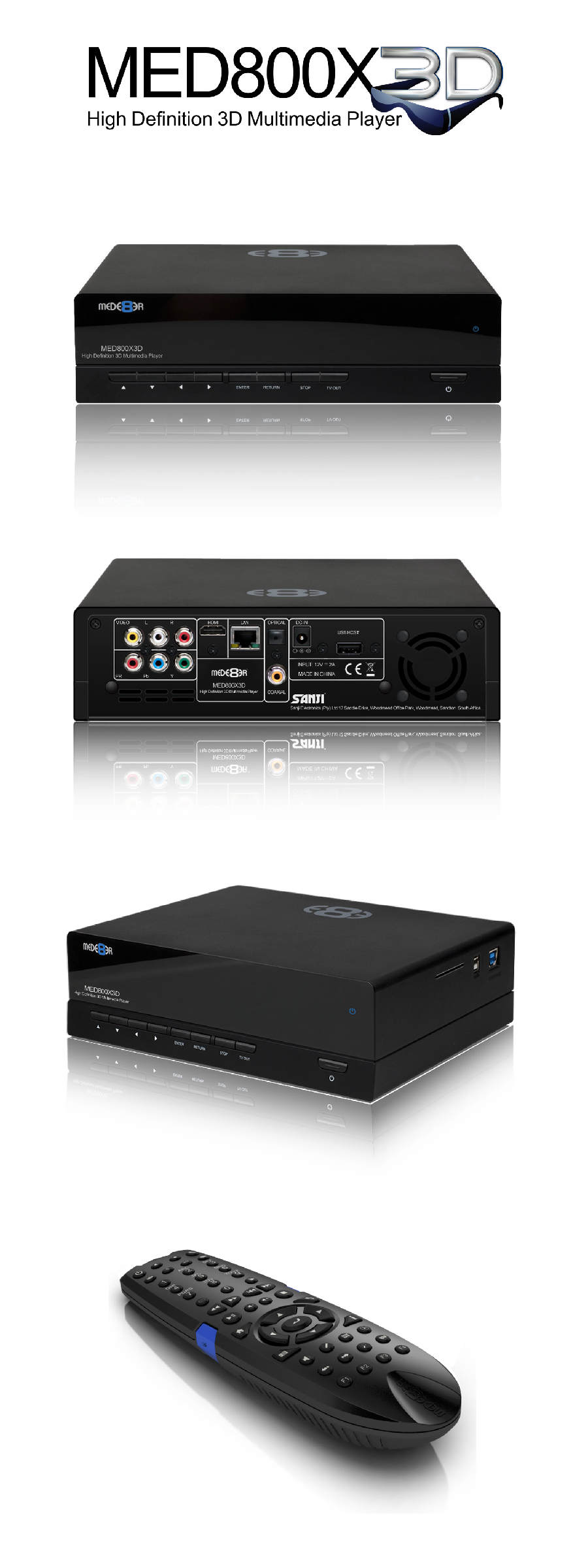

Mede8er MED800X3D
Mede8er MED800X3D
High Definition Multimedia Player
The MED800X3D is a 3D Multimedia Player that is base on the award wining MED100X3D. The MED800X3D has a build in 3.5” Hard Drive Bay and it is ideal for hosting USB Drive or Network Streaming. Works on 2D and 3D TV’s.
• Full 3D - HDMI 1.4 - Play 3D BD-ISO
• Built in 40mm cooling fan - TPE mounts for
low noise
• Opional 3.5" SATA Internal Hard Drive Bay - Up to 4TB
• Active Backlit
Remote with Self Learning Hot Button
• Mede8er Developed Movie & Music Jukebox - Database
Driven
• Web Services, YouYube XL, Web Browser
• Built in Mede8er Favorites Manager
•
Community Skins and Easy Backdrop Customization
• HD Audio - 7.1 DTSMA & Dolby True
HD
• Fast USB3.0 & Gbit Network Port
• Music JukeBox Local & Network Support
• Built
In View Manager (5 Custom views)
• Compatible with Mac HFS+ USB Drives
• Movie XML
Med Data in Media Library
• Video JukeBox XML Search Function
• Hard Drive Spin Down
Function
• Alpha Search in Media Library
• Internet Media Streams
• Social Media
• Watches
Indicator
• Built in Web Browser
• Optional Wi-Fi USB / PCIe
• Internet Radio (SHOUTcast)
•
Full Parental Control on Folders
• SD Card slot
• Samba Server - NAS Storage
• Photo
slide show with background music
• Subtitle: SRT, SSA, SUB, SMI format
• Network -
Ethernet 10/100/1000* Mbps port
AWARD WINNING
MEDE8ER FIRMWARE
Processor: RDT1186 - 750Mhz - 512MB SLC Flash - 512MB DDR3 SDRAM
Video Fomats Supported: AVI/BDMV Light/BDISO Light/MKV/TS/TP/TRP/M2TS/MPG/MP4/MOV/M4V/VOB/ISO/DAT/WMV/ASF/RM/RMVB/FLV
resolution up to 720p/1080i/1080p
3D Video: Full 3D/Side By Side/Top & Bottom/Frame Sequential/Frame Packing.
Audio Codec Supported: MP3/MP2/OGG Vorbis/PCM/LPCM/AAC/RA/Dolby True HD - DTS MA
Passthrough on HDMI/AC3 - DTS 5.1/Flac up to 24bit 192Khz/WAV/WMA Standard (DRM &
Advanced Profile not Supported)
Photo format Supported: JPEG/BMP/GIF/TIFF/PNG
File System Supported: FAT32/NTFS/HFS+ (MAC)
Video Output Resolution: NTSC/PAl/480P/576P/720P/1080i/1080p/1080p 24Hz input
Output: HDMI 1.4 - Component Video - Composite Video - Stereo RCA - SD - SDHC - Sony
Pro Duo Card Slot - SPDIF Optical - Co-Ax Digital - Slave Port USB 3.0 - Host USB
Port USB 2.0 x2
Optional WiFi: USB WiFi 802.11n/g Antenna or MED20PCIe (Wifi is optional unless otherwise
stated on the order during checkout)
Optional Hard Drive: Internal Hard Drive is optional unless otherwise stated on the
order during checkout.
Specifications subject to change without notice, DTS, DTS-HD the symbol & DTS or
DTS-HD and the Symbols together are registered trademarks of DTS, Inc ©DTS Inc. All
Rights Reserved
Package Contents:
- MED800X3D Media Player
- Remote Control
- Multi-Plug Type Power Supply 100~240v AC Adapter (Free Voltage-Worldwide use)
- North America Wall Plug Adapter Clip (Only shipped to applicable addresses)*
- European Mainland Wall Plug Adapter Clip (Only shipped to applicable addresses)*
- UK Wall Plug Adapter Clip (Only shipped to applicable addresses)*
- Australian plug adapter Clip (ship ONLY for Australia & New Zealand Customers)*
- HDMI 1.4 Cable
- AV Cable
- USB3.0 Cable
- HDD Securing Screws
- User Manual
*The applicable Plug Adapter is shipped base on the destination address unless specified/requested by the buyer.
