HARDWARE SPECIFICATION



Chipset:
Sigma Designs SMP8642, 667MHz CPU with floating point coprocessor.



Memory:
512 DDR2 DRAM
256 NAND Flash
1GB internal flash drive (for BDLive or other content)



Audio/Video Outputs:
HDMI v1.3a supports deep color and true HD audio enjoyment
Component Video
Composite Video
Stereo Analog Audio
S/PDIF Optical and Coaxial Digital Audio



Interface:

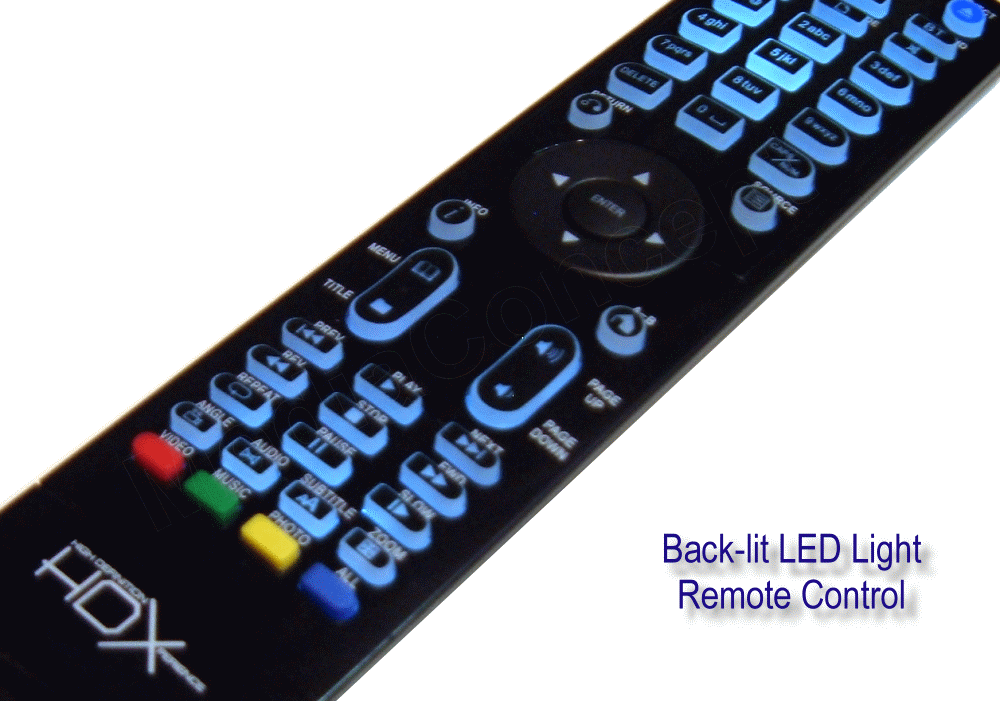

Power button via remote with standby and reset button
2x USB 2.0 host at the back
1x SATA (one occupied by HDD tray)
1x eSATA (for external HDD or BD Rom Connectivity)
3.5" HDD tray



Network:
Gigabit Ready LAN adapter



Power:
100~240V AC, 50~60 Hz, max 2.5A usual power consumption
10 W (no device connected)
maximum power consumption: 36 W



Footprint:

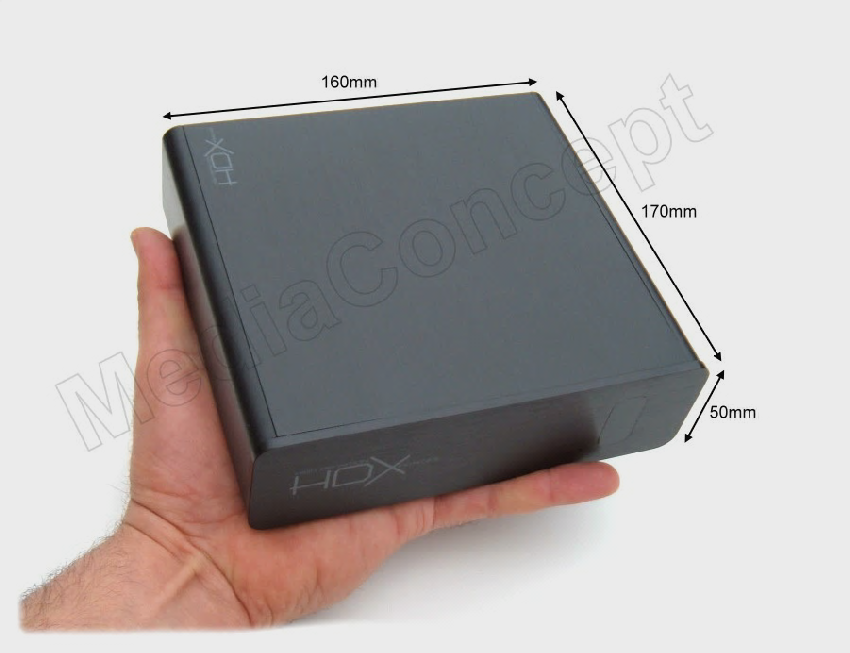

Width x Depth x Height : 170mm x160mm x 50mm (6.69" x 6.29" x 1.96")



Weight:
1kg (2lbs 2oz)

SOFTWARE SPECIFICATION



Connectivity:
Bonjour
UPnP SSDP
UPnP AV
Windows Media Connect
Windows Media Player NSS
Samba
NFS
UPNP Media Servers: TVersity, Twonkymedia
BitTorrent P2P
Usenet downloader
NAS Access : SMB, NFS, FTP


Video containers:
MPEG1/2/4 Elementary (M1V, M2V, M4V)
MPEG1/2 PS (M2P, MPG, DAT, VOB)
MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS)
AVI, ASF, WMV
Matroska (MKV)
MOV (H.264), MP4
AVS
Video Decoders:
XVID SD/HD
MPEG-1
MPEG-2 MP@HL
MPEG-4.2 ASP@L5, 720p, 1-point GMC
MPEG-4.10 (H.264) : BP@L3, MP@L4.0, HP@L4.0, HP@L4.1
WMV9 : MP@HL
SMPTE 421M (VC-1) : MP@HL, AP@L3



Audio Containers:
AAC, M4A
MPEG audio (MP1, MP2, MP3, MPA)
WAV
WMA
FLAC
OGG
APE


Audio Decoders:

Dolby Digital
DTS
WMA, WMA Pro
MPEG-1 Layer 1, 2, 3
MPEG-4 AAC-LC
MPEG-4 HE-AAC
MPEG-4 BSAC
LPCM
FLAC
Vorbis
Audio Pass-Through:
DTS, DTS-HD HR, DTS-HD MA
Dolby Digital, Dolby Digital Plus, Dolby True HD


Other Formats:
ISO, IFO navigation
AVCHD navigation
Blu-ray** ready (requires addition of compatible external BD-ROM)
Photo Formats:
JPEG, BMP, PNG, GIF, TIFF
Subtitle Formats:
SRT, MicroDVD SUB, SSA, SUB/IDX
