EGreat S2
EGreat S2 Full-HD Media Player/Blu-Ray Support
Key Features:

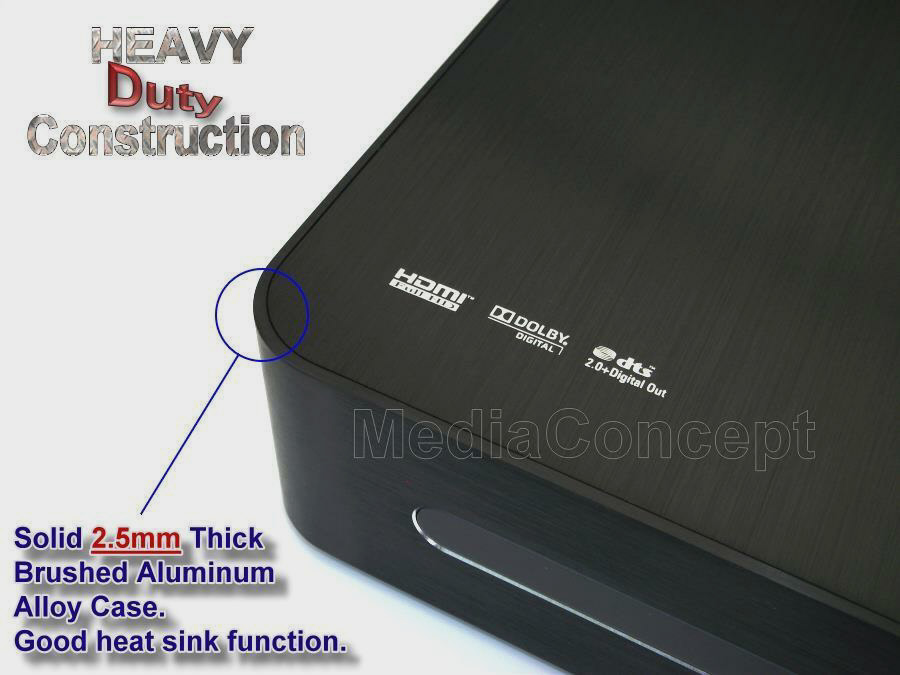

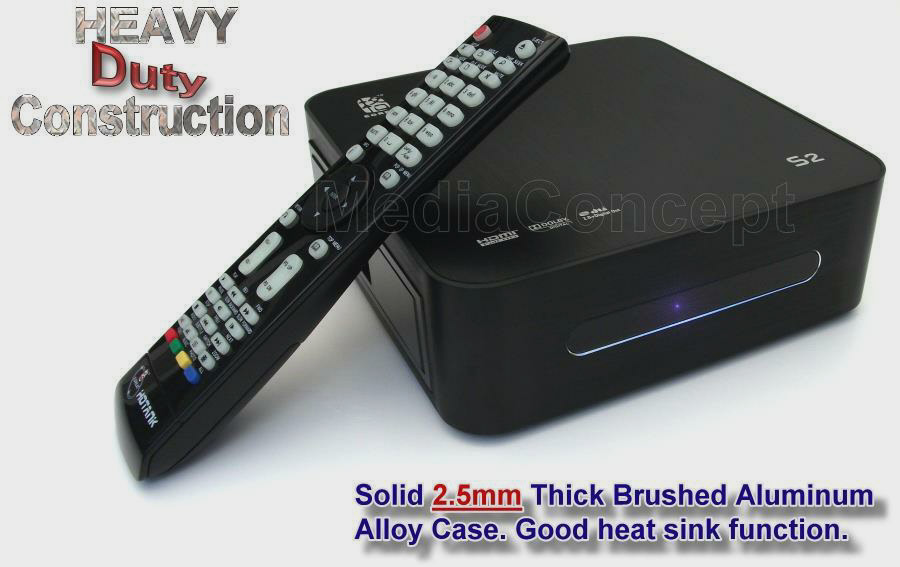

- Solid Aluminum alloy case, good heat sink
- Sigma Design SMP8643 CPU with floating point coprocessor
- Mobile rack design for easy, friendly and quick installation
- Besides of internal SATA port, there is another external SATA port for external SATA HDD, Blu-ray ROM or DVD ROM without extra power
- Support original BD disk (need SATA BD-ROM, not included)
- 4 USB 2.0 Salve ports
- Gigabit LAN
Chipset:
Sigmadesign8643, 667MHz CPU
Memory:
512MB DDR2, 256MB NAND FLASH.

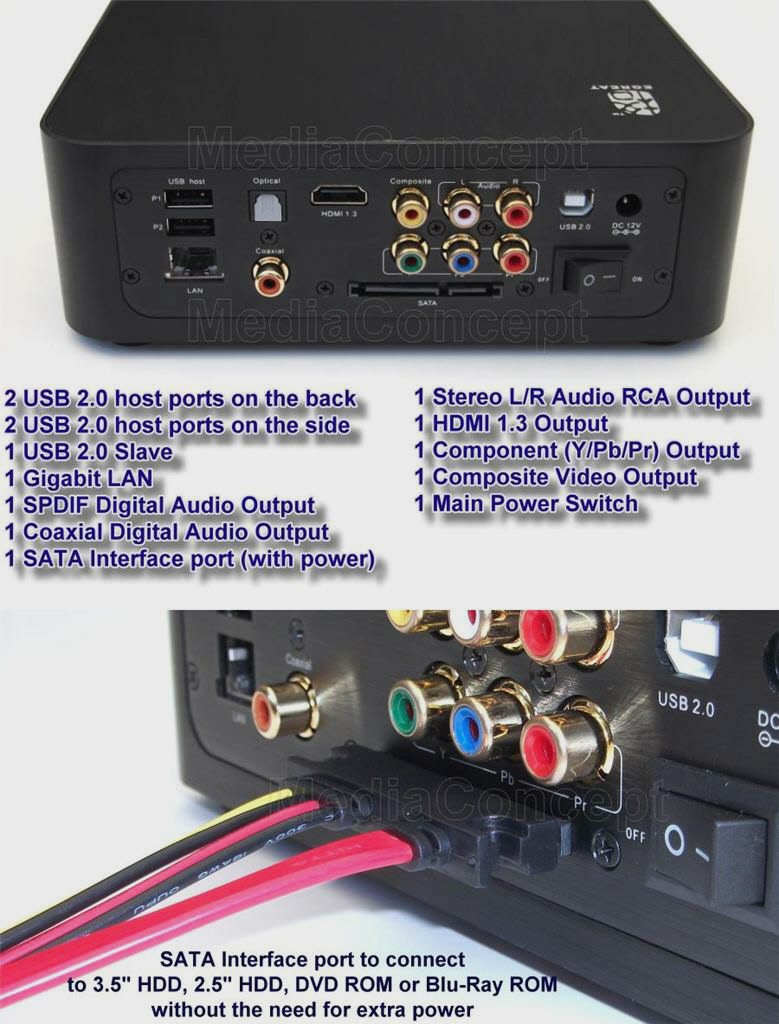

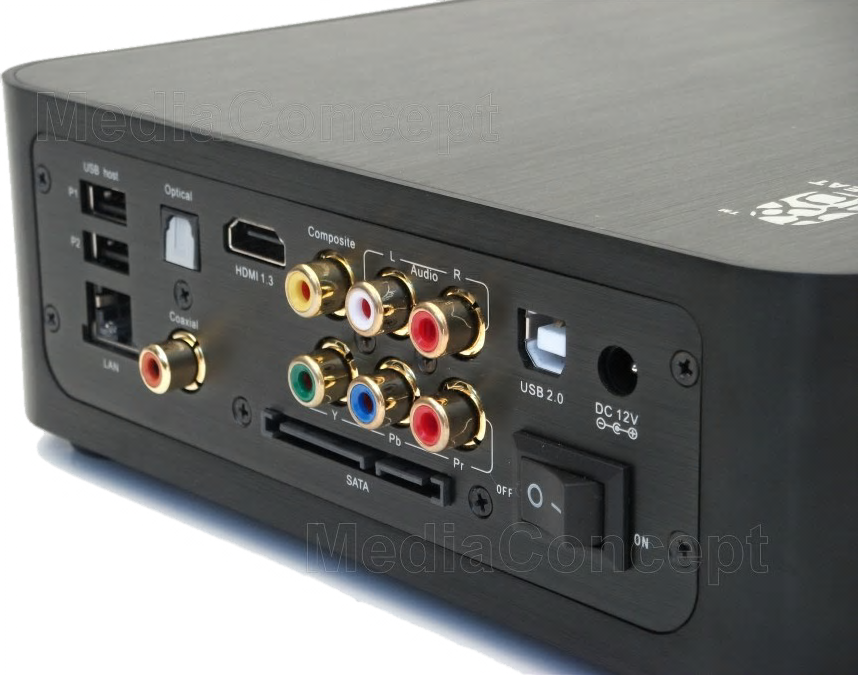

Output connectors:
Video Output connectors:
· HDMI 1.3
· Component (Y/Pb/Pr)
· Composite
· Audio Output connectors:
· Stereo
· SPDIF Digital audio output
· Coaxial digital audio output
Other interface:
· 2 x USB hosts at the side.
· 2 x USB hosts at the back
· 1 x USB slave at the back
· 1 x SATA port at the back which can install DVD ROM or HDD without extra power
Network
Ethernet 10/100/1000 Mbps
Power on/off control by RC
Add one MCU which can support power on/off by RC.
Power on/off control by RC
Add one MCU which can support power on/off by RC.
Specification:
Video container
* MPEG1/2/4 Elementary (M1V, M2V, M4V)
* MPEG1/2 PS (M2P, MPG)
* MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS)
* VOB
* AVI, ASF, WMV
* Matroska (MKV)
* MOV (H.264), MP4, RMP4
Video decoder
* XVID SD/HD
* MPEG-1
* MPEG-2 -MP@HL
* MPEG-4.2 - ASP@L5, 720p, 1-point GMC
* WMV9 -MP@HL
* H.264 -BP@L3 ,MP@L4.0 ,HP@L4.0 ,HP@L4.1
* VC-1 -MP@HL ,AP@L3
Audio container
* AAC, M4A
* MPEG audio (MP1, MP2, MP3, MPA)
* WAV
* WMA
* FLAC
* OGG
Audio decoder
* WMA, WMA Pro
* AAC
* MP1, MP2, MP3
* LPCM
* FLAC
* Vorbis
Picture format
JPEG, BMP, PNG, GIF
Subtitle format
SRT, SMI, SUB, SSA
HDD partition
FAT32, NTFS,EXT3
Size
205.4x198x67mm
Package Content:
S2 Player (Hard Drive/WiFi not included)

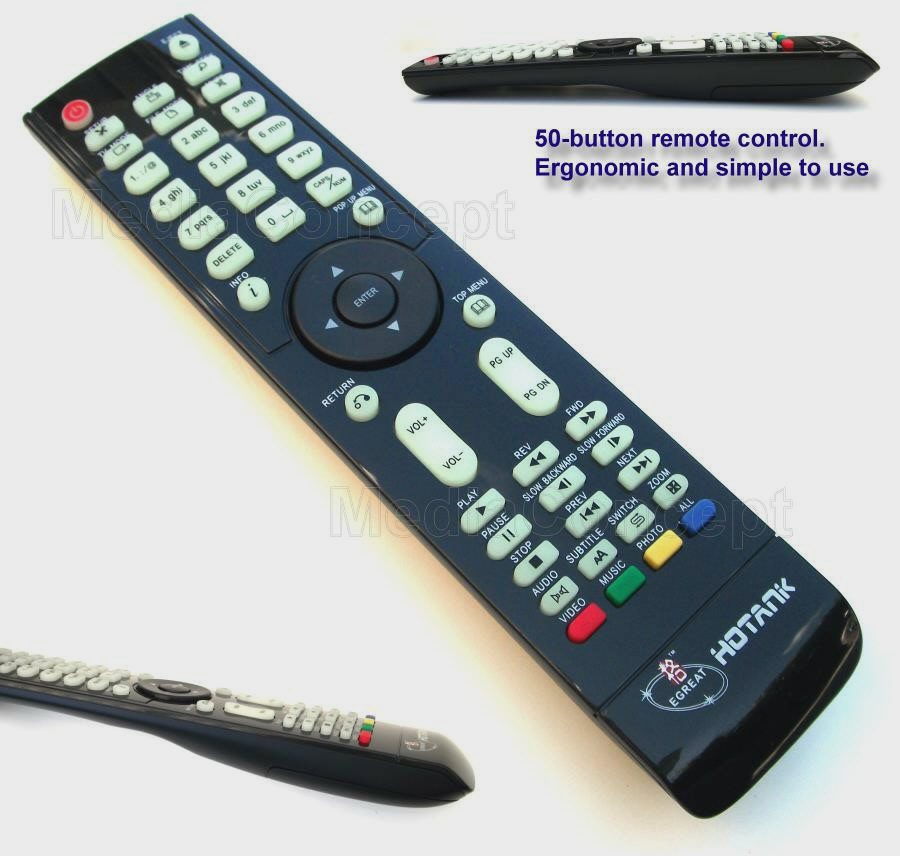

Remote control

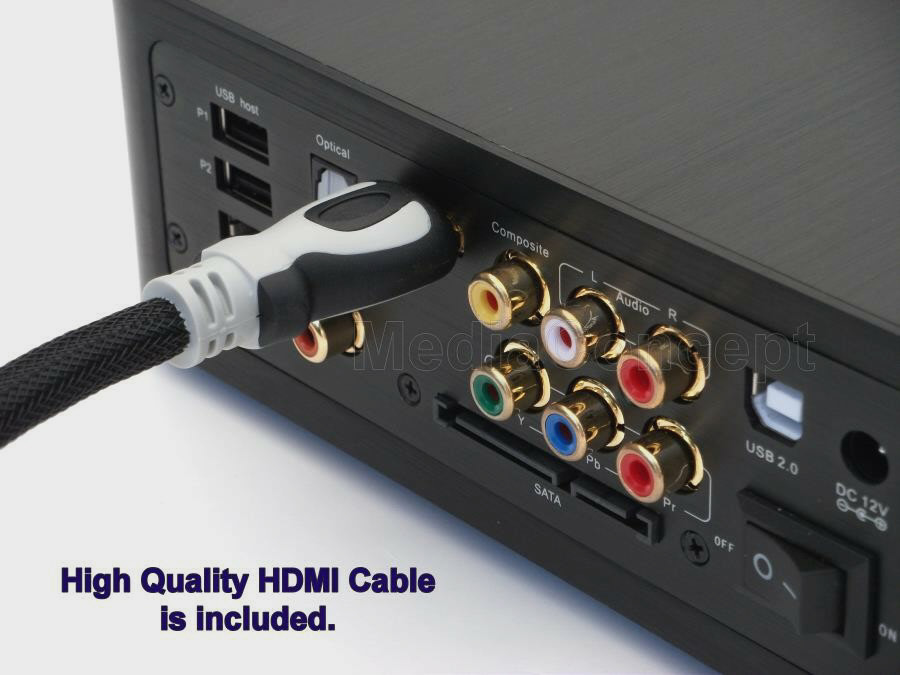

Gild HDMI cable
USB2.0 cable
12V/3A power supply
AC cable Noth/South America type wall plug
Simple install guide
